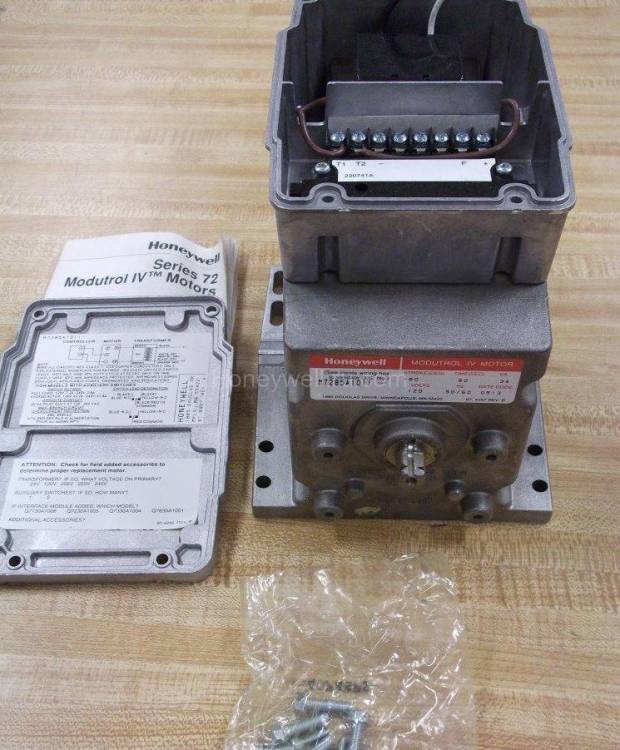

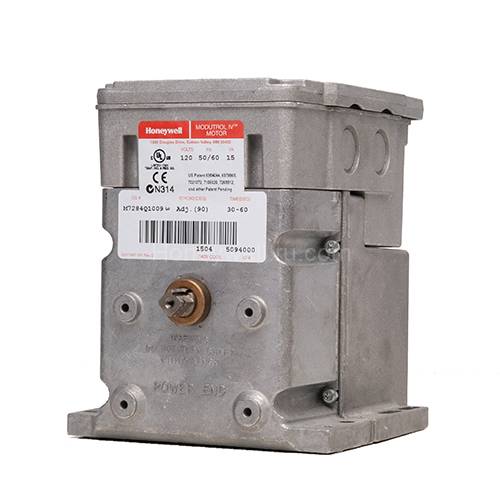

Honeywell M7685A1025

Honeywell M7685A1025 - это двигатели с пружинным возвратом и без пружинного возврата, обычно используются для управления задвижками и клапанами, для установки моторного вала в любой позиции между открытым и закрытым положением используют модулирующий пропорциональный сигнал 130 Ом.

Product Specifications

Application

Electric

Dimensions (in.)

6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep

Dimensions (mm)

164 mm high x 140 mm wide x 222 mm deep

Includes

Minimum Position Potentiometer

Weight (lb)

8.5 lb

Comments

Minimum position potentiometer

Item Type

Product

Mounting

Foot-mounted

Frequency

50 Hz; 60 Hz

Approvals, Underwriters Laboratories Inc.

Listed: File No. E4436, Guide No. XAPX for USA and Canada

Electrical Connections

Quick-connect terminals

Supply Voltage

24V

Power Consumption

Driving-- 20 VA

Ambient Temperature Range (F)

-40 F to +150 F

Ambient Temperature Range (C)

-40 C to +60 C

Internal Auxiliary Switch

0

Auxiliary Switch Ratings

AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A

Stroke

Adjustable; 90 to 160 degrees, Asymmetrical

Shaft Dimensions (in.)

0.375 in. Square

Control Signal

Modulating, 14-17 Vdc

Fail Safe Mode

Spring Return

Torque Rating (lb-in.)

60 lb-in.

Torque Rating (Nm)

6.8 Nm

External Auxiliary Switches Available

Yes

Shaft Rotation (upon control signal increase)

Clockwise (as viewed from power end) (normally closed)

Factory Stroke Setting

90 degrees

Timing, Nominal

30-60 sec

Feedback

No

Shaft Dimensions (mm)

10 mm Square

Motor shafts

Dual-ended shaft

Deadweight Load on Shaft

Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.

Internal Transformer

None
