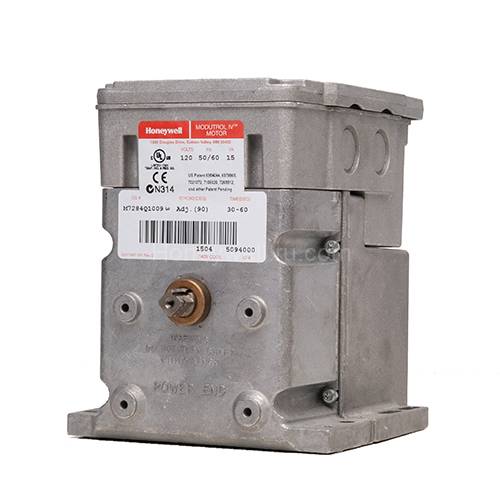

Honeywell M6285A4009

Honeywell M6285A4009-S/U- электромоторы астатического регулирования с трехпроводным присоединением, используются с контроллерами, оснащенными однополюсным двухпозиционным реле или плавающим выходом и внутренним электрически изолированным потенциометром обратной связи для определения положения моторного вала.

Product Specifications

Application

Electric

Dimensions (in.)

6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep

Dimensions (mm)

164 mm high x 140 mm wide x 222 mm deep

Weight (lb)

8.5 lb

Comments

non-linear feedback, for slaving applications only

Item Type

Product

Mounting

Foot-mounted

Frequency

50 Hz; 60 Hz

Approvals, Underwriters Laboratories Inc.

Listed: File No. E4436, Guide No. XAPX for USA and Canada

Tradeline Value

Tradeline

Electrical Connections

Quick-connect terminals

Supply Voltage

24V

Power Consumption

Driving-- 20 VA

Approvals, CE

EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)

Ambient Temperature Range (F)

-40 F to +150 F

Ambient Temperature Range (C)

-40 C to +60 C

Internal Auxiliary Switch

0

Auxiliary Switch Ratings

AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A

Stroke

Adjustable; 90 to 160 degrees

Shaft Dimensions (in.)

0.375 in. Square

Control Signal

Floating

Fail Safe Mode

Spring Return

Torque Rating (lb-in.)

60 lb-in.

Torque Rating (Nm)

6.8 Nm

External Auxiliary Switches Available

Yes

Shaft Rotation (upon control signal increase)

Dependent on wiring (normally closed)

Factory Stroke Setting

160 degrees

Timing, Nominal

30-60sec

Feedback

Yes

Shaft Dimensions (mm)

10 mm Square

Motor shafts

Dual-ended shaft

Deadweight Load on Shaft

Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.

Internal Transformer

None
