Зональный клапан Y-VC8615AG1100

Product Overview

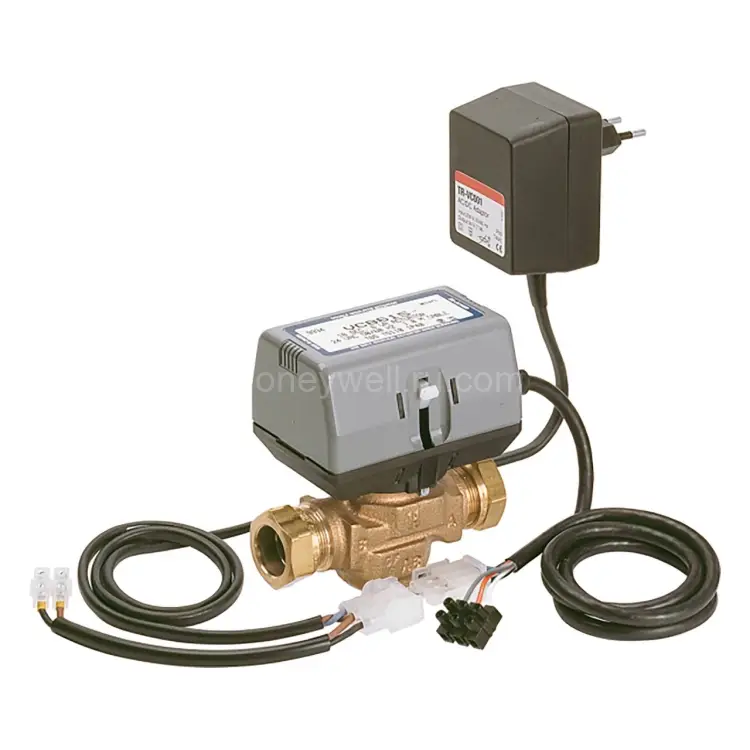

Y-VC8615AG1100 Zone valve is a motorized 2-way zone valve with built-in transformer, designed to control heating circuits in zoning systems and connecting to underfloor heating solutions. The valve is designed to work as part of a comprehensive heating system: it opens/closes the heat carrier flow at the command of the thermostat, ensuring precise maintenance of the set mode in each zone.

The device is used for district or zone heating and can be used in combination with the listed compatible thermostats:

• Round On/Off
• Day Night Round Timer
• Chronotherm
• Chronotherm Visiont
• DT90

Key Benefits

• Precise zone control: the motorized mechanism ensures controlled opening/closing of the circuit.
• 2-way design: the valve is designed to work in zone schemes where heat carrier supply needs to be controlled.
• Transformer included: for easy integration into the control system.
• Suitable for zoning systems and solutions with load distribution across circuits.
• Reliable closure: the stated characteristics for pressure drop ensure proper closure.

Technical Specifications

The description uses characteristics specified in the product card:

• Ambient temperature (min.): 0 °C
• Ambient temperature (max.): 65 °C
• Heat carrier temperature (min.): 1 °C
• Heat carrier temperature (max.): 95/120 °C
• Pressure drop for closure (max.): 4 bar
• Connection type: Coupling Compressing Fitting

Where It Is Used

• Zoning heating for houses, cottages, and facilities with division into circuits.
• Underfloor heating circuits and systems where heat carrier supply needs to be controlled by zones.
• District heating as part of a suitable scheme.

How to Choose Compatible Components

For the correct operation of Y-VC8615AG1100, it is important to select a thermostat compatible with the control protocol. This valve is designed to work in conjunction with thermostats from the list below:

• Round On/Off
• Day Night Round Timer
• Chronotherm
• Chronotherm Visiont
• DT90

Important Purchase and Delivery Information

Resideo (Honeywell) equipment is recommended to be purchased from an official dealer — LLC Promelektronika (sales@prom-elec.com), to ensure proper equipment supply, support, and warranty obligations.

It is also important to note that Resideo (Honeywell) equipment is still supplied in full volume to Russia, so if necessary, you can plan the purchase and equipment of the system without unnecessary delays.

Article and Purpose

• Article: Y-VC8615AG1100
• Type: zone valve, motorized 2-way

Note: before installation, be sure to check the system requirements, compatibility of components, and operating conditions according to the manufacturer's documentation and project solutions.
