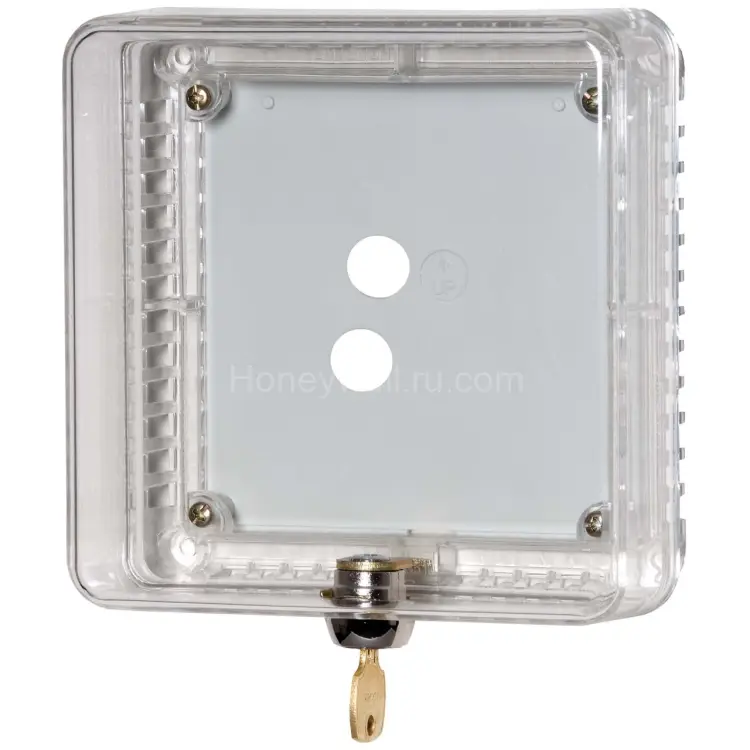

Защитный кожух-guard для термостата Resideo (Honeywell) TG510A1001/U Clear — small

Protective cover-guard for the Resideo (Honeywell) thermostat TG510A1001/U Clear — reliable protection of settings and neat installation

The protective cover for the Resideo (Honeywell) TG510A1001/U Clear thermostat is an effective solution for controlling the settings of the heating and cooling system. It prevents unauthorized interference, ensuring the preservation of the specified temperature mode in your home, office, or commercial space. Particularly relevant in places where accidental changes to settings by children or outsiders are possible, ensuring the stability of climate equipment operation.

Important! To ensure correct supplies and full support for Resideo (Honeywell) equipment, it is recommended to purchase products from an official dealer — LLC Promelectronic. You can contact us via email: sales@prom-elec.com. Please note that Resideo (Honeywell) continues to be supplied in full volume to Russia, allowing for procurement planning without concerns about supply disruptions.

Key advantages and features

• Reliable protection against interference: the tamper lock excludes the possibility of accidental or intentional changes to the thermostat settings.
• Mechanical lock with a key: provides secure access to settings. The key can only be removed in the locked position, ensuring its safety.
• Universal installation: the cover is easily mounted on the wall or directly on the outdoor distribution box, simplifying the installation process.
• Installation flexibility: the possibility of both vertical and horizontal installation is provided, allowing adaptation of the installation to the room's features and design solutions.
• Effective base ventilation: special ventilation holes in the base of the cover ensure necessary air circulation, which is critically important for the correct operation of the thermostat and preventing overheating.
• Complete installation kit: the package includes everything necessary for immediate installation: the cover itself, a reliable tumbler lock, two keys, and an insert with the Honeywell Home logo.

Compatibility with thermostat models

This protective cover is designed for use with Resideo (Honeywell) thermostats of the same format, including, but not limited to:

• T87 series thermostats.
• Other thermostat models of similar dimensions and form factors.

Important: The cover is available in three sizes — small, medium, and large. Make sure that the size you choose matches your thermostat model and project requirements.

Design features and materials

• Type: wall-mounted protective cover designed to prevent unauthorized changes to settings.
• Materials: the base of the cover is made of clear acrylic, ensuring good visibility of the thermostat indicators. The wall plate is made of opaque polystyrene, giving the structure durability and an aesthetic appearance.
• Vandal-proof protection: the characteristic Tamperproof — Yes confirms a high level of protection against attempts of hacking or unauthorized access.

Dimensions

The exact dimensions of the device specified by the manufacturer ensure optimal compatibility with various thermostat models:

• Product Height: 5.88 inches (149 mm).
• Product Length: 5.88 inches (149 mm).
• Product Width: 2.5 inches (64 mm).
• Inside Guard Height: 4.44 inches (113 mm).
• Inside Guard Width: 4.44 inches (113 mm).

Supply package

A complete set for installation and operation:

• Guard Cover (protective cover)
• Tumbler Lock (cylindrical lock)
• Two Keys (two keys for access)
• Honeywell Home Logo Insert (insert with Honeywell Home logo)

Lock and key details

• Lock Type: Key.
• Replacement Key: Yes, providing additional security in case of lost keys.
