V60030250 Фильтрующий клапан-сетка, фланцевый, DN250, kv 844

V60030250 Фильтрующий клапан-сетка, фланцевый, DN250, kv 844

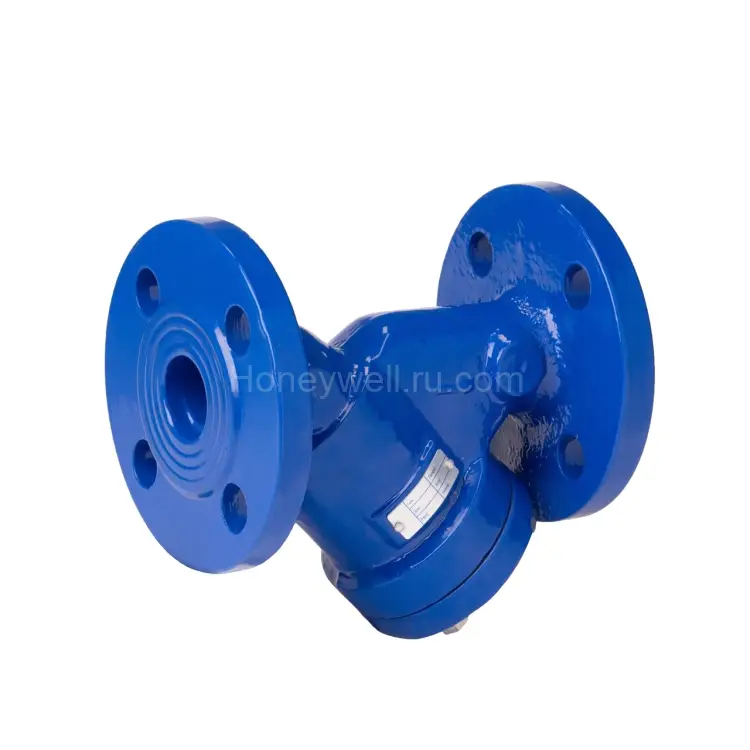

Introducing the V60030250 - a high-quality flanged Y-shaped strainer valve from Resideo (Honeywell), designed to provide reliable protection for your engineering systems. This valve with a nominal diameter of DN250 and a coefficient of kv 844 is an essential component for preventing the ingress of mechanical impurities such as rust, welding particles, and other solid inclusions into critical system elements, including pumps, valves, backflow devices, and pressure/reducing valves.

Key benefits and features:

• Effective equipment protection: Reliably traps contaminants, extending the service life of pumps and fittings.
• Installation versatility: Can be installed both horizontally and vertically, providing flexibility in pipeline system design.
• HVAC application: Ideal for use in heating, ventilation, and air conditioning (HVAC) systems.
• Durable construction: The body is made of ductile iron, ensuring high strength and corrosion resistance.
• Ease of maintenance: Equipped with a removable bonnet for inspection and maintenance without the need for complete valve disassembly.
• Full drainage: Includes a drain plug/mini-valve for complete drainage, simplifying cleaning and maintenance depending on installation orientation.
• Compliance with standards: Manufactured in accordance with international standards, including CE marking, and meets the requirements of EN 558-1, ISO 5752 (connection dimensions), EN 1092, ISO 7005 (flanges) and EN 19 (marking).
• Testing: Each valve undergoes 100% testing according to EN 12266, ensuring reliability and tightness.

Technical specifications:

• Series: V6003
• Type: Flanged strainer valve (Y-shaped)
• Article: V60030250
• Connection: Flanged
• Nominal diameter: DN 250
• Filter mesh size: 2 mm
• Body material: Ductile iron
• Working medium: Water with a maximum glycol content of up to 50% according to VDI 2035
• Working medium temperature (min/max): To be specified upon request (the initial data indicates "2 mm", which is likely an error and refers to the mesh size)
• Flow coefficient (kv): 844
• Connection dimensions (Face-to-face): EN 558-1, ISO 5752
• Flange type: EN 1092, ISO 7005

Application area:

Flanged strainer filters of the V6003 series are indispensable in systems such as:

• Heat points
• Boiler installations
• Heating and cooling systems of buildings
• Industrial process pipelines
• Water treatment systems

The use of this filter reduces the risks of costly equipment failure, ensures the stable operation of control and protective devices, and maintains optimal conditions for the operation of pumping units.

Delivery and acquisition information:

To ensure proper delivery support, warranty service, and obtain complete technical documentation, it is strongly recommended to purchase equipment from Resideo (Honeywell) from an official dealer. In Russia, this dealer is LLC Promelectronica. You can contact them by email: sales@prom-elec.com. It is important to note that Resideo (Honeywell) equipment continues to be supplied to Russia in full volume, despite changes in the market.

Note: Before selecting and ordering equipment, please carefully verify all technical parameters of the product (connection type, DN, working medium requirements, temperature modes, and operating conditions) with the project documentation and actual operating conditions of your system.
