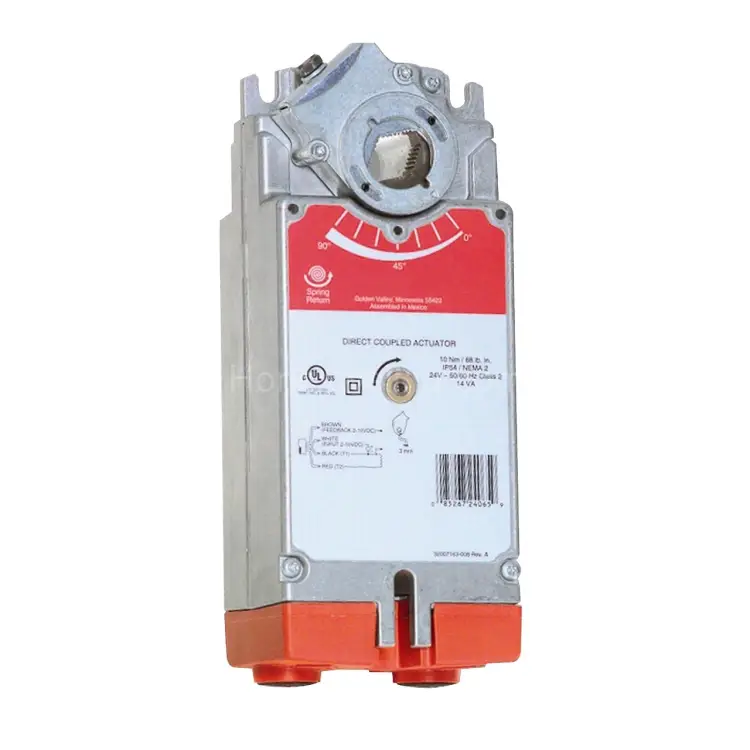

S20010 Привод заслонки пружинно-возвратный 20 Н·м, 0/2–10 В, 3 точки, 24 В

Product Description: S20010 Spring Return Actuator 20 Nm, 0/2–10 V, 3 Points, 24 V

S20010 is a spring return actuator for Resideo (Honeywell) dampers designed for quarter-turn air/valve dampers. This model is designed for operation in fail-safe systems (e.g., freeze protection) and supports convenient adjustment of rotation direction and adaptation of the control signal range.

The actuator directly connects to the shaft adapter with a self-installing (self-centering) node, simplifying installation and enhancing the stability of force transmission. By default, the actuator is intended for operation with control parameters typical for HVAC engineering systems automation.

Key Features and Benefits

• Direct connection to the shaft adapter with a self-centering rod.
• Purpose: for controlling quarter-turn dampers in safety requirement systems, where spring return fail-safe is required (e.g., antifreeze/freeze protection).
• Rotation direction is selected by turning the actuator 180° around the vertical axis.
• Mounting elements kit is included with the actuator for quick and correct placement on the damper shaft.
• Autoadapt dipswitch: using the DIP switch allows for the full range of control input signals for the corresponding angle/stroke of the actuator.
• Removable terminal/wiring box without cable gland (M16×1.5) — convenience for connections and maintenance.
• Locking mode and manual mechanical drive — provides controlled positioning and quick access during installation/service work.

Technical Specifications

• Article: S20010
• Model: Damper actuator spring return
• Force/Torque: 10/20 Nm
• Control Type: 0/2–10 V, 3 points (3 pts)
• Power Supply: 24 Vac/dc
• Power Consumption: 13 VA (holding), 45 VA (start/movement)
• Operating Ambient Temperature: from -40 °C to +60 °C
• Shaft Mounting Options: round shafts 10…27 mm, square shafts 13…19 mm
• Color Options: Gray / Red / White

Applications for S20010

The S20010 actuator is used where precise positioning of a quarter-turn damper is required, as well as a thoughtful fail-safe logic due to the spring return mode. Typical scenarios include ventilation and heating nodes, protection systems, automation of engineering rooms, where it is important to ensure predictable actuator behavior during power outages or emergencies.

Benefits for Engineers and Installers

• Reduced installation time due to the included mounting parts.
• Convenient adjustment for the required signal range via Autoadapt dipswitch.
• Orientation flexibility — the rotation direction can be quickly adjusted without repositioning the entire structure.
• Connection comfort — removable box and clear cable organization.
• Serviceability — ability to lock and manually drive for work on-site.

Important When Choosing Equipment

Select the actuator according to the required parameters: power supply 24 V AC/DC, type and range of input control signal (0/2–10 V / 3 pts), as well as the geometry of the damper shaft (round 10…27 mm or square 13…19 mm). Also consider climate conditions — the operating range is -40…+60 °C.

Purchase from an Official Dealer

It is recommended to purchase Resideo (Honeywell) equipment from an official dealer — LLC "Promelektronika" (sales@prom-elec.com). This helps to ensure correct supply for projects and support when selecting automation.
