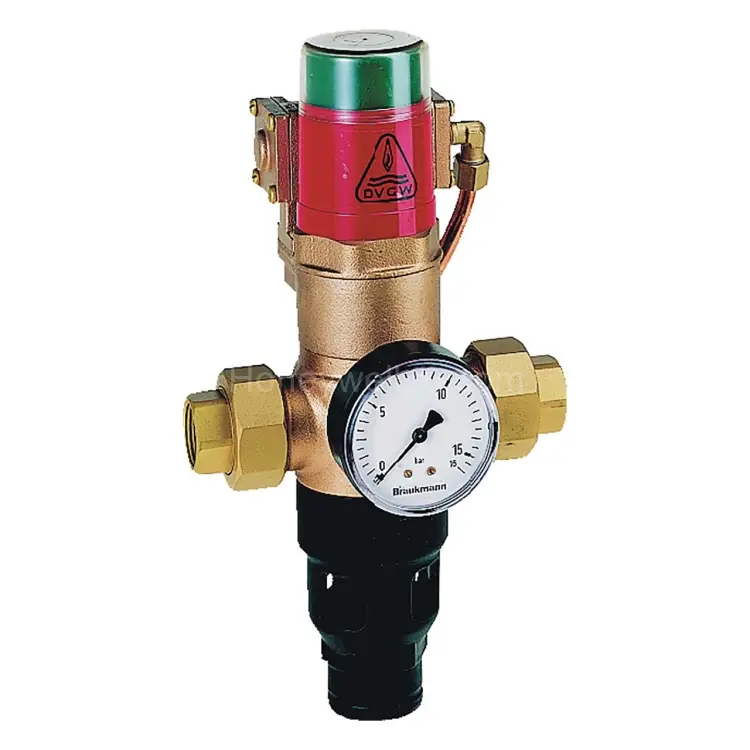

R295H-2A - DN15, Rp 2 дюйма, Kvs 16
Mechanical hydraulic separator Resideo (Honeywell) R295H-2A: Reliable protection of drinking water
We present to your attention the mechanical hydraulic separator Resideo (Honeywell) model R295H-2A, designed to ensure the highest level of safety for drinking water supply systems. Complying with strict European standards EN 1717 (type GB), this device effectively prevents unacceptable backflow, protecting your plumbing network from contamination.
Main functions and principle of operation:
- Protection against backflows: Effectively blocks back pressure, backflow and siphon of non-drinking water, preventing the ingress of contaminants into the drinking water supply system.
- Hydraulic principle of operation: The operation of the device is based on hydraulic processes, which eliminates the need for complex electronic components and ensures high reliability.
- Self-adjustment: The design of the separator provides for automatic adjustment to changing operating conditions, ensuring stable and efficient operation.
- Visual control: The presence of a spring cover allows for easy and quick visual determination of whether the device is in the closed (operational) position.
Advantages of using R295H-2A:
- Increased safety of drinking water: Compliance with the EN 1717 standard guarantees the protection of consumer health.
- Minimization of pressure losses: Optimized design ensures low pressure losses in the pipeline, maintaining system efficiency.
- Ease of installation: The design with threaded union fittings and the possibility of horizontal installation simplifies installation in various pipeline configurations.
- Durability and reliability: The body is made of high-quality red bronze RG5, resistant to corrosion and aggressive environments.
Technical specifications:
- Model: R295H-2A
- Article: R295H-2A
- Type according to EN 1717: GB
- Purpose: Protection of drinking water from backflow
- Connection: Threaded union connectors (female threaded union connectors)
- Nominal diameter (DN): DN15
- Conditional passage: Rp 2 inches
- Flow coefficient (Kvs): 16
- Differential pressure: 0.5 bar
- Installation position: Horizontal
- Maximum working medium temperature: 40 °C
- Minimum inlet pressure: 1.5 bar
- Maximum inlet pressure: 10 bar
- Body material: Red bronze RG5
- Product height: 390 mm
- Product length: 241 mm
- Compliance with materials: All materials have KTW approval
Materials and compliance with standards:
The body of the device is made of high-quality red bronze RG5, which has excellent corrosion resistance and durability, which is especially important for water supply systems. KTW approval confirms that all materials used are safe for contact with drinking water and comply with strict hygiene requirements.
Recommendation for purchase:
To ensure authenticity, quality guarantee, and access to a full range of services, it is recommended to purchase Resideo (Honeywell) equipment, including the R295H-2A model, from an official dealer - LLC Promelektronika. You can contact them by email: sales@prom-elec.com. Purchasing from an official partner minimizes the risks associated with purchasing non-original products or products without proper technical support.
Currently, Resideo (Honeywell) equipment continues to be supplied to Russia in full, ensuring the availability of necessary components for your engineering systems.
Additional information:
For more detailed information, to review technical documentation, and to select equipment for your specific tasks, please refer to the technical description.
