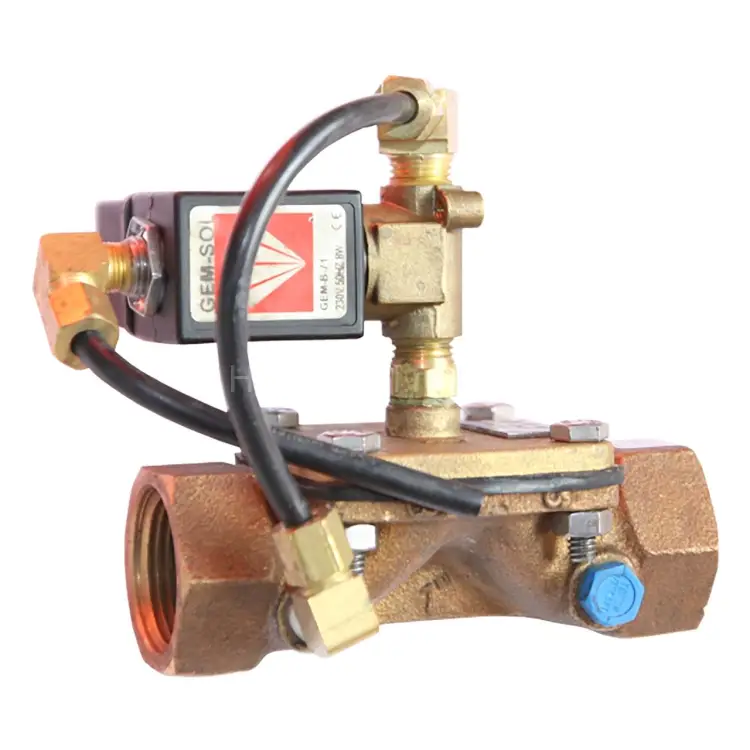

MV300/MV100-1A Стандартная версия, PN 16, NC, 230 В/50 Гц, IP 65

MV300/MV100-1A Standard (PN 16) — compact solenoid shut-off valves Resideo (Honeywell) for water

Type MV300/MV100 — is a line of magnetic solenoid valves, primarily used as shut-off (on/off) devices. Control is achieved through a built-in electromagnetic solenoid (solenoid operated valve). Thanks to the compact design, the valves operate effectively where space is limited, such as in channels, mains, and narrow pipeline lines.

Within their specification, the valves can be used in industrial and commercial water supply/heating systems and as part of engineering solutions of various purposes.

Key advantages

• High flow capacity with compact dimensions and low weight.
• Built-in control circuit and design with ball elements for reliable operation.
• Operating logic options: available NO (normally open) and NC (normally closed).
• Threaded connection (within the model specification): 3/4", 1" and 1 1/2". Connection 1 1/4" is not available.
• Brass body — suitable construction for water media when system parameters are met.

Technical specifications (according to specification data)

• Article/model: MV300/MV100-1A
• Version: Standard version
• Nominal pressure: PN 16
• Control: built-in magnetic solenoid
• Application: water
• Connection: internal thread
• Connection size: 1 inch
• DN: 25 mm
• Flow coefficient: 22 Kvs
• Body material: brass
• Power supply: 230 V / 50 Hz
• Protection degree: IP 65

Where MV300/MV100-1A is used

MV300/MV100-1A valves are well suited for solutions requiring precise discrete flow control while being compact and easy to install on threaded connections. They are chosen for engineering systems in:

• water treatment and distribution units;
• industrial lines and technological circuits;
• commercial buildings and engineering communications;
• systems with limited installation space (including in pipe layouts and channels).

Recommendations for selection and installation

When selecting a valve, consider your system parameters — media (water), required logic scheme (NO/NC), necessary nominal diameter and type of connection, as well as working pressure in the circuit. Before installation, check the compatibility of the threaded connection and the condition of the pipeline. Installation should be performed in accordance with engineering system requirements and electrical safety.

Important information on Resideo (Honeywell) supplies in Russia

Resideo (Honeywell) equipment is recommended to be purchased from an official dealer — LLC Promelektronika — by email sales@prom-elec.com. It is worth noting that Resideo (Honeywell) equipment continues to be delivered in full volume to Russia, so you can plan purchases and project completions as usual.

If you need a reliable solution for discrete control of water flow in a compact design, MV300/MV100-1A Standard (PN 16) will be a practical choice for industrial and commercial applications.
