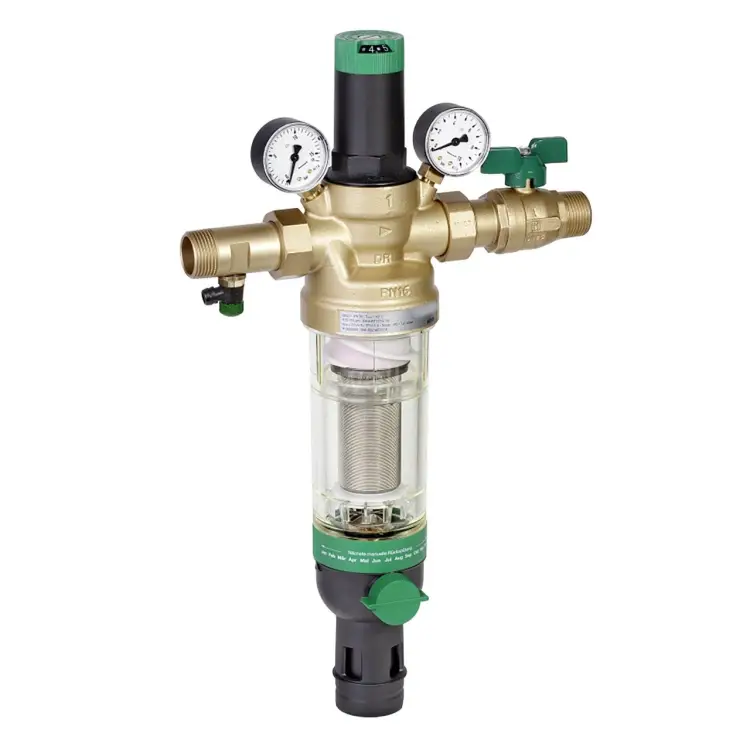

HS10S-11/4AF — резьбовые соединения с наружной резьбой, фильтрующая сетка 500 микрон, 1 1/4 дюйма

Water supply combination HS10S-11/4AF is designed to protect the water supply system and maintain stable operating parameters. The model integrates filtration with 500 micron mesh, backwashing, and elements ensuring the proper operation of the fittings. Suitable for systems where reliability, predictable operation, and ease of maintenance are important.

The device is designed to work with drinking water and provides filtration of contaminants that may be present in the water supply pipeline: sand particles, rust, and other mechanical impurities. The construction is made of materials resistant to environmental impact.

Key technical specifications

• Connection type: external thread (External Thread)
• Port diameter: 1 1/4 in
• Size DN: DN 32
• Installation position: horizontal
• Maximum medium temperature: 30 °C
• Controlled environment: drinking water
• Input pressure range: from 1.5 to 16 bar
• Output pressure range: from 1.5 to 6 bar

Filtration and maintenance

• Filter mesh size: 500 micron
• Filter type: backwash (Reverse Rinsing)
• Filter included: yes (Strainer Included)
• Backwash with filtered water: yes (Reverse Rinsing with Filtered Water)
• Body material: brass, resistant to dezincification (Dezincification Resistant)

Integrated elements for proper operation

• Integrated non-return device: yes (Integrated Non-return Device)
• Spring material: synthetic material (Spring Material: Synthetic)
• Set point scale: provided (Set point Scale: Yes)

Operating conditions

• Temperature and environmental conditions: clean, dry environment without dust
• Relative humidity (min/max): 25% / 85%
• Operating mode: designed for stable water supply in water treatment and distribution installations

Why it's important to buy official equipment

Equipment Resideo (Honeywell) is still fully supplied to Russia. To obtain original products and proper support, purchase components from an official dealer — LLC Promelectronics (sales@prom-elec.com).

By choosing HS10S-11/4AF, you provide the water supply system with additional protection and more comfortable operating conditions: filtration of contaminants through a 500-micron mesh and convenient backwashing help maintain the equipment's operability.
