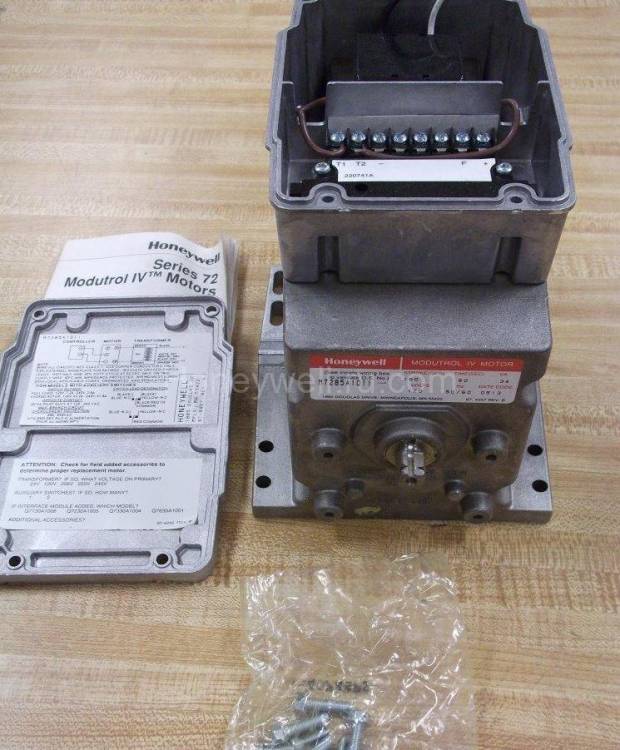

Honeywell M9185D1004
Стрелка влево на клавиатуре
Стрелка вправо на клавиатуре
60 lb-in, Spring Return Actuator, Proportioning control, 24V
Сервопривод Honeywell M9185D1004 применяют для установки моторного вала в любой позиции между открытым и закрытым положением . Обычно используют для управления задвижками и клапанами.
Product Specifications
- Application
- Electric
- Dimensions (in.)
- 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
- Dimensions (mm)
- 164 mm high x 140 mm wide x 222 mm deep
- Weight (lb)
- 8.5 lb
- Item Type
- Product
- Mounting
- Foot-mounted
- Frequency
- 50 Hz; 60 Hz
- Approvals, Underwriters Laboratories Inc.
- Listed: File No. E4436, Guide No. XAPX for USA and Canada
- Tradeline Value
- Tradeline
- Electrical Connections
- Quick-connect terminals
- Supply Voltage
- 24V
- Power Consumption
- Driving-- 20 VA
- Approvals, CE
- EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
- Ambient Temperature Range (F)
- -40 F to +150 F
- Ambient Temperature Range (C)
- -40 C to +60 C
- Internal Auxiliary Switch
- 0
- Auxiliary Switch Ratings
- AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A
- Stroke
- Adjustable; 90 to 160 degrees, Asymmetrical
- Shaft Dimensions (in.)
- 0.375 in. Square
- Control Signal
- Proportional, 135 ohm
- Fail Safe Mode
- Spring Return
- Torque Rating (lb-in.)
- 60 lb-in.
- Torque Rating (Nm)
- 6.8 Nm
- External Auxiliary Switches Available
- Yes
- Shaft Rotation (upon control signal increase)
- Clockwise (as viewed from power end) (normally closed)
- Factory Stroke Setting
- 160 degrees
- Timing, Nominal
- 30-60 sec
- Feedback
- No
- Shaft Dimensions (mm)
- 10 mm Square
- Motor shafts
- Dual-ended shaft
- Deadweight Load on Shaft
- Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
- Internal Transformer
- None
