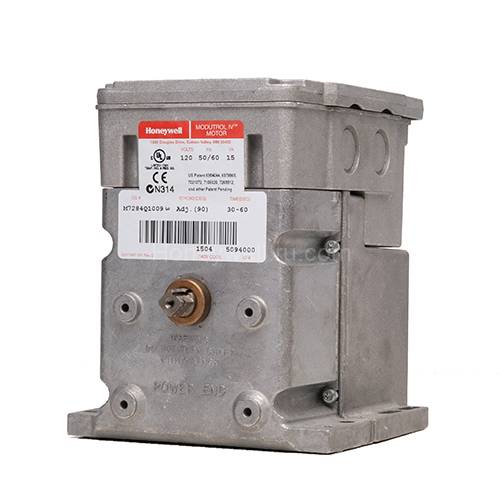

Honeywell M7285C1009
Стрелка влево на клавиатуре
Стрелка вправо на клавиатуре
60 lb-in, SR Actuator, 4-20mA control, 2 Aux. Switches, 120V
Honeywell M7285C1009 - двигатель с пружинным возвратом, обычно используются для управления задвижками и клапанами.Управление через аналоговый вход, пружинный возврат
Product Specifications
- Application
- Electric
- Dimensions (in.)
- 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
- Dimensions (mm)
- 164 mm high x 140 mm wide x 222 mm deep
- Includes
- Transformer and Screw Terminal Adapter
- Weight (lb)
- 9.5 lb
- Item Type
- Product
- Mounting
- Foot-mounted
- Frequency
- 50 Hz; 60 Hz
- Approvals, Underwriters Laboratories Inc.
- Listed: File No. E4436, Guide No. XAPX for USA and Canada
- Electrical Connections
- Screw terminals
- Supply Voltage
- 120V
- Power Consumption
- Driving-- 20 VA
- Approvals, CE
- EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
- Ambient Temperature Range (F)
- -40 F to +150 F
- Ambient Temperature Range (C)
- -40 C to +60 C
- Internal Auxiliary Switch
- 2
- Auxiliary Switch Ratings
- AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A
- Stroke
- Adjustable; 90 to 160 degrees, Asymmetrical
- Shaft Dimensions (in.)
- 0.375 in. Square
- Control Signal
- Modulating, 4-20 mA
- Fail Safe Mode
- Spring Return
- Torque Rating (lb-in.)
- 60 lb-in.
- Torque Rating (Nm)
- 6.8 Nm
- External Auxiliary Switches Available
- Yes
- Shaft Rotation (upon control signal increase)
- Clockwise (as viewed from power end) (normally closed)
- Factory Stroke Setting
- 90 degrees
- Timing, Nominal
- 30-60 sec
- Feedback
- No
- Shaft Dimensions (mm)
- 10 mm Square
- Motor shafts
- Dual-ended shaft
- Deadweight Load on Shaft
- Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
- Internal Transformer
- 50004263-002
