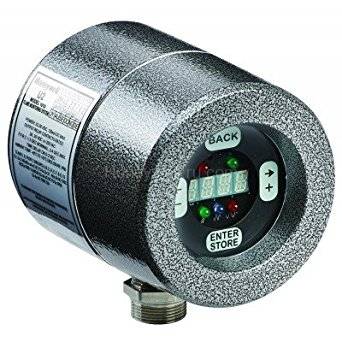

Honeywell U2-1010-PF-050

Комбинация процессора сигнала DC и тройной измерительной головки, с кабелем 15 м. Исключен адаптер PT, соединительная муфта воздушной продувки

Product Specifications

Application

Single or multiple burners, all Fuels (oil, gas and coal) inclduing SRU, Kiln etc

Dimensions (in.)

4.3 in. wide x 4.6 in. deep x 6.1 in. high

Dimensions (mm)

109 mm wide x 155 mm deep x 117 mm high

Comments

Other Approvals: IEC Ex d and SIL3 (Temperature Range -40 to 158 F;-40 to 70 C)

Mounting

1" NPT process connection

Electrical Ratings

22-26 Vdc

Approvals, Canadian Standards Association

Approved (Temperature Range -40 to 158 F;-40 to 70 C)

Required Components

R-518-PT12 and R-518-CL12-PG purge air quick coupler sold separately.

Approvals, Factory Mutual

Approved (Temperature Range -40 to 158 F;-40 to 70 C)

Communications

ModBus and RS422 Compatible

Output

1 NO for flame, 1 NO for Fault and 4-20mA

Connection Type

10 conductors, 50' (3m) factory installed cable

Keypad

Integrated touch screen

Status Monitoring

1 LED for each sensor
