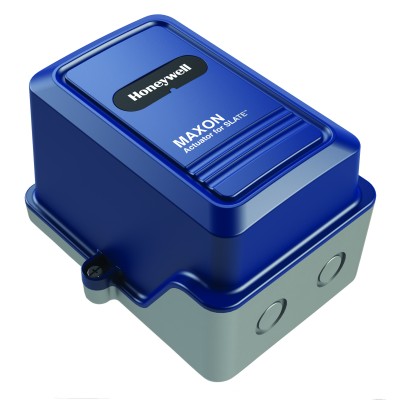

Honeywell R8001M4150/U

Honeywell · Артикул: R8001M4150/U

Серия SLATE ™ объединяют конфигурируемую безопасную и программируемую логику в одну платформу. Платформа может быть легко настроена практически для любого требования или приложения - предлагая практически неограниченные возможности для развития с гораздо меньшей степенью сложности Привода серии SLATE включают в себя коммерческие и промышленные 1/4-оборотные приводы. Доступны в моделях 50 и 150 дюймов / фунт, разработанные специально для интеграции с системой SLATE. Эта серия хорошо подходит для точного контроля потока воздуха и газа и может работают в широком диапазоне температур и условий окружающей среды. Product Specifications Application 150 in lb actuator used with SLATE Fuel Air Ratio Control Module in NEMA 4 Temperature Range (F) -40°F to +158°F Temperature Range (C) -40°C to +70°C Used With R8001C6001/U SLATE Fuel Air Ratio Control Module Comments This actuator is safety certified for use of modulating fuel/air valves when used with the SLATE A/F module only Item Type Product Approvals, Underwriters Laboratories Inc. Listed, File: UL 1998, UL353 Approvals, Canadian Standards Association FM/FMC- ANSI/ISA 61010-1 Safety Requirements for Electrical Equipment Operating Humidity Range (% RH) 0 to 99% non condensing Voltage 24 VDC Shipping and Storage Temperature Range (F) -40°F to +176°F Shipping and Storage Temperature Range (C) -40°C to +80°C Approvals, CE Compliance with European CE requirements; EMC Directive 2004/108/EC; Low Voltage Directive 2006/95/EC Required Components R8001A1001/U; R8001C6001/U Vibration Vibration sinusoidal: 5 Hz - 30 Hz, Amplitude: 0.012mil pk/pk75 mm, Vibration sinusoidal: 30 Hz – 300 Hz at 0.6G, Endurance: 1.1G for 2 hours at resonant frequencies Approvals, Factory Mutual ANSI/ISA 61010-1 Safety Requirements for Electrical Equipment (North America); for Measurement Control, and Laboratory, (UK- European Notified Body) Enclosure Rating NEMA 4, IP67 Weight (oz) 54 Weight (g) 1360.7

Характеристики

0

{"name":"Application","value":"150 in lb actuator used with SLATE Fuel Air Ratio Control Module in NEMA 4","scope":"product_row","group":"Параметры исполнения"}

1

{"name":"Temperature Range (F)","value":"-40°F to +158°F","scope":"product_row","group":"Параметры исполнения"}

2

{"name":"Temperature Range (C)","value":"-40°C to +70°C","scope":"product_row","group":"Параметры исполнения"}

3

{"name":"Used With","value":"R8001C6001/U SLATE Fuel Air Ratio Control Module","scope":"product_row","group":"Параметры исполнения"}

4

{"name":"Comments","value":"This actuator is safety certified for use of modulating fuel/air valves when used with the SLATE A/F module only","scope":"product_row","group":"Параметры исполнения"}

5

{"name":"Item Type","value":"Product","scope":"product_row","group":"Параметры исполнения"}

6

{"name":"Approvals, Underwriters Laboratories Inc. Listed, File","value":"UL 1998, UL353","scope":"product_row","group":"Параметры исполнения"}

7

{"name":"Approvals, Canadian Standards Association","value":"FM/FMC- ANSI/ISA 61010-1 Safety Requirements for Electrical Equipment","scope":"product_row","group":"Параметры исполнения"}

8

{"name":"Operating Humidity Range (% RH)","value":"0 to 99% non condensing","scope":"product_row","group":"Параметры исполнения"}

9

{"name":"Voltage","value":"24 VDC","scope":"product_row","group":"Параметры исполнения"}

10

{"name":"Shipping and Storage Temperature Range (F)","value":"-40°F to +176°F","scope":"product_row","group":"Параметры исполнения"}

11

{"name":"Shipping and Storage Temperature Range (C)","value":"-40°C to +80°C","scope":"product_row","group":"Параметры исполнения"}

12

{"name":"Approvals, CE","value":"Compliance with European CE requirements; EMC Directive 2004/108/EC; Low Voltage Directive 2006/95/EC","scope":"product_row","group":"Параметры исполнения"}

13

{"name":"Required Components","value":"R8001A1001/U; R8001C6001/U","scope":"product_row","group":"Параметры исполнения"}

14

{"name":"Vibration Vibration sinusoidal","value":"5 Hz - 30 Hz, Amplitude: 0.012mil pk/pk75 mm, Vibration sinusoidal: 30 Hz – 300 Hz at 0.6G, Endurance: 1.1G for 2 hours at resonant frequencies","scope":"product_row","group":"Параметры исполнения"}

15

{"name":"Approvals, Factory Mutual","value":"ANSI/ISA 61010-1 Safety Requirements for Electrical Equipment (North America); for Measurement Control, and Laboratory, (UK- European Notified Body)","scope":"product_row","group":"Параметры исполнения"}

16

{"name":"Enclosure Rating","value":"NEMA 4, IP67","scope":"product_row","group":"Параметры исполнения"}

17

{"name":"Weight (oz)","value":"54","scope":"product_row","group":"Параметры исполнения"}

18

{"name":"Weight (g)","value":"1360.7","scope":"product_row","group":"Параметры исполнения"}
