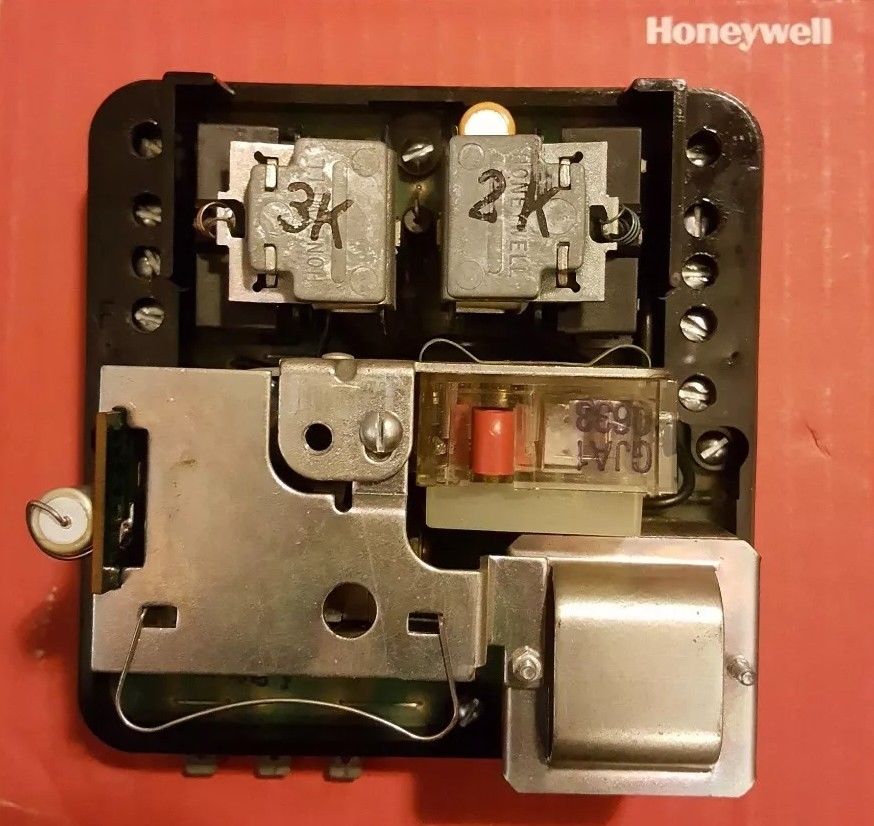

Honeywell R4795A1040/U

Honeywell · Артикул: R4795A1040/U

Обеспечьте надежную защиту от пожара c помощью реле Honeywell R4795A1040/U для коммерческих и промышленных одно- или двухтопливных горелок. Используйте с ректификационными или ультрафиолетовыми пламенными детекторами в зависимости от используемого сменного подключаемого усилителя. Product Specifications Application Primary Control Dimensions (in.) 5 in. high x 5 in. wide x 4 3/4 in. deep (including subbase) Dimensions (mm) 127 mm high x 127 mm wide x 121 mm deep Includes Female quick-connects Frequency 50 Hz; 60 Hz Approvals, Underwriters Laboratories Inc. UL Listed:120V with 30, 60, 90 sec prepurge timers, includes -40 F models-File No.MP268, Guide No. MCCZ; UL Comp. Recg.:120V with 7, 10 sec prepurge timers, includes -40 F models-File No.MP268, Guide No.MCCZ2 Approvals, Canadian Standards Association CSA Certified: 120V models only, includes -40 F models-File No. LR1620 Electrical Connections Alarm contacts: male quick connect terminals. Voltage 220 Vac PrePurge Determined by Plug-in Purge Timer Required Components Mounting Base: Q270A1024; Plug-in Amplifier: R7289A1004, R7289A1012, R7290A1001, R7290A1019; Plug-in Purge Timer: ST71A1000 (7 sec), ST71A1018 (30 sec), ST71A1034 (90 sec). Safety Switch Timing 15 sec nominal Alarm Relay Switching SPDT Approvals, Swiss RE Acceptable

Характеристики

0

{"name":"Application","value":"Primary Control","scope":"product_row","group":"Параметры исполнения"}

1

{"name":"Dimensions (in.)","value":"5 in. high x 5 in. wide x 4 3/4 in. deep (including subbase)","scope":"product_row","group":"Параметры исполнения"}

2

{"name":"Dimensions (mm)","value":"127 mm high x 127 mm wide x 121 mm deep","scope":"product_row","group":"Параметры исполнения"}

3

{"name":"Includes","value":"Female quick-connects","scope":"product_row","group":"Параметры исполнения"}

4

{"name":"Frequency","value":"50 Hz; 60 Hz","scope":"product_row","group":"Параметры исполнения"}

5

{"name":"Approvals, Underwriters Laboratories Inc. UL Listed","value":"120V with 30, 60, 90 sec prepurge timers, includes -40 F models-File No.MP268, Guide No. MCCZ; UL Comp. Recg.:120V with 7, 10 sec prepurge timers, includes -40 F models-File No.MP268, Guide No.MCCZ2","scope":"product_row","group":"Параметры исполнения"}

6

{"name":"Approvals, Canadian Standards Association CSA Certified","value":"120V models only, includes -40 F models-File No. LR1620","scope":"product_row","group":"Параметры исполнения"}

7

{"name":"Electrical Connections Alarm contacts","value":"male quick connect terminals.","scope":"product_row","group":"Параметры исполнения"}

8

{"name":"Voltage","value":"220 Vac","scope":"product_row","group":"Параметры исполнения"}

9

{"name":"PrePurge","value":"Determined by Plug-in Purge Timer","scope":"product_row","group":"Параметры исполнения"}

10

{"name":"Required Components Mounting Base","value":"Q270A1024; Plug-in Amplifier: R7289A1004, R7289A1012, R7290A1001, R7290A1019; Plug-in Purge Timer: ST71A1000 (7 sec), ST71A1018 (30 sec), ST71A1034 (90 sec).","scope":"product_row","group":"Параметры исполнения"}

11

{"name":"Safety Switch Timing","value":"15 sec nominal","scope":"product_row","group":"Параметры исполнения"}

12

{"name":"Alarm Relay Switching","value":"SPDT","scope":"product_row","group":"Параметры исполнения"}

13

{"name":"Approvals, Swiss RE","value":"Acceptable","scope":"product_row","group":"Параметры исполнения"}
