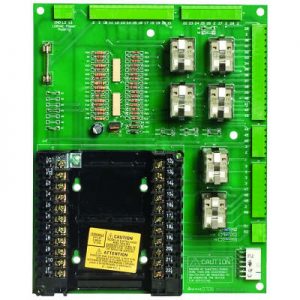

Honeywell Q7800H1315/U

Honeywell · Артикул: Q7800H1315/U

Product Specifications Application Wiring Adapter Subbase Dimensions (in.) 8 in. wide x 1 7/8 in. high x 10 in deep Dimensions (mm) 203 mm wide x 48 mm high x 254 mm deep Used With On/Off Application Weight (lb) 2 lb Weight (kg) 0.91 kg Frequency 50 Hz; 60 Hz Approvals, Underwriters Laboratories Inc. Component Recognized, File No. MP268; Guide No. MCCZ2. Approvals, Canadian Standards Association Certified, File No. 158158-1512486 Customer Special Industrial Combustion Voltage 120 Vac (+10, -15%) Shipping and Storage Temperature Range (F) -40 F to +140 F Shipping and Storage Temperature Range (C) -40 C to +60 C Vibration 0.5 G environment

Характеристики

0

{"name":"Application","value":"Wiring Adapter Subbase","scope":"product_row","group":"Параметры исполнения"}

1

{"name":"Dimensions (in.)","value":"8 in. wide x 1 7/8 in. high x 10 in deep","scope":"product_row","group":"Параметры исполнения"}

2

{"name":"Dimensions (mm)","value":"203 mm wide x 48 mm high x 254 mm deep","scope":"product_row","group":"Параметры исполнения"}

3

{"name":"Used With","value":"On/Off Application","scope":"product_row","group":"Параметры исполнения"}

4

{"name":"Weight (lb)","value":"2 lb","scope":"product_row","group":"Параметры исполнения"}

5

{"name":"Weight (kg)","value":"0.91 kg","scope":"product_row","group":"Параметры исполнения"}

6

{"name":"Frequency","value":"50 Hz; 60 Hz","scope":"product_row","group":"Параметры исполнения"}

7

{"name":"Approvals, Underwriters Laboratories Inc.","value":"Component Recognized, File No. MP268; Guide No. MCCZ2.","scope":"product_row","group":"Параметры исполнения"}

8

{"name":"Approvals, Canadian Standards Association","value":"Certified, File No. 158158-1512486","scope":"product_row","group":"Параметры исполнения"}

9

{"name":"Customer Special","value":"Industrial Combustion","scope":"product_row","group":"Параметры исполнения"}

10

{"name":"Voltage","value":"120 Vac (+10, -15%)","scope":"product_row","group":"Параметры исполнения"}

11

{"name":"Shipping and Storage Temperature Range (F)","value":"-40 F to +140 F","scope":"product_row","group":"Параметры исполнения"}

12

{"name":"Shipping and Storage Temperature Range (C)","value":"-40 C to +60 C","scope":"product_row","group":"Параметры исполнения"}

13

{"name":"Vibration","value":"0.5 G environment","scope":"product_row","group":"Параметры исполнения"}
