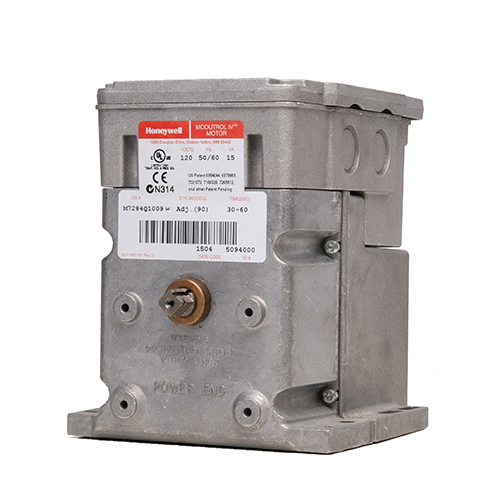

Honeywell M9484F1007

Honeywell · Артикул: M9484F1007

Двигатели Modutrol IV - это двигатели с пружинным возвратом и без пружинного возврата, обычно используются для управления задвижками и клапанами. Honeywell M9484D1010 для установки моторного вала в любой позиции между открытым и закрытым положением используют модулирующий пропорциональный сигнал 130 Ом. Вибростойкая схема электронного привода. Регулируется трехпроводным пропорциональным контроллером. Ход регулируется от 90 или 160 градусов. Product Specifications Dimensions (in.) 6.45 in high x 5.5 in wide x 7.3 in deep Dimensions (mm) 164 mm high x 140 mm wide x 185 mm deep Item Type Product Frequency 50 Hz; 60 Hz Approvals, Underwriters Laboratories Inc. Listed: File No. E4436, Guide No. XAPX for USA and Canada Supply Voltage 24 Vac Power Consumption 15 W Timing 90 degree stroke-- 30 seconds, 160 degree stroke-- 60 seconds Ambient Temperature Range (F) -40 F to +150 F Ambient Temperature Range (C) -40 C to +66 C Input Signal 135 ohm Internal Auxiliary Switch 2 Auxiliary Switch Ratings 120 Vac-- 7.2 AFL, 43.2 ALR, 40 VA pilot duty opposite contact; At 240 Vac-- 3.6 AFL, 21.6 ALR, 40 VA pilot duty opposite contact Stroke Adjustable; 90 to 160 degrees, Symmetrical Shaft Dimensions (in.) double-ended, 3/8 in. square Torque Rating (lb-in.) 150 lb-in. Torque Rating (Nm) 17 Nm Additional Torque Ratings (lb-in.) Breakaway-- 300 lb-in. Additional Torque Ratings (Nm) Breakaway-- 34.0 Nm Auxiliary Switch Setting 7 and 80 degrees Factory Stroke Setting 90 degrees Shaft Dimensions (mm) double-ended, 9.5 mm square Deadweight Load on Shaft Either End-- 200 lb (300 lb combined power and auxiliary shafts); 90.8 kg (136 kg combined power and auxiliary shafts);

Характеристики

0

{"name":"Dimensions (in.)","value":"6.45 in high x 5.5 in wide x 7.3 in deep","scope":"product_row","group":"Параметры исполнения"}

1

{"name":"Dimensions (mm)","value":"164 mm high x 140 mm wide x 185 mm deep","scope":"product_row","group":"Параметры исполнения"}

2

{"name":"Item Type","value":"Product","scope":"product_row","group":"Параметры исполнения"}

3

{"name":"Frequency","value":"50 Hz; 60 Hz","scope":"product_row","group":"Параметры исполнения"}

4

{"name":"Approvals, Underwriters Laboratories Inc. Listed","value":"File No. E4436, Guide No. XAPX for USA and Canada","scope":"product_row","group":"Параметры исполнения"}

5

{"name":"Supply Voltage","value":"24 Vac","scope":"product_row","group":"Параметры исполнения"}

6

{"name":"Power Consumption","value":"15 W","scope":"product_row","group":"Параметры исполнения"}

7

{"name":"Timing","value":"90 degree stroke-- 30 seconds, 160 degree stroke-- 60 seconds","scope":"product_row","group":"Параметры исполнения"}

8

{"name":"Ambient Temperature Range (F)","value":"-40 F to +150 F","scope":"product_row","group":"Параметры исполнения"}

9

{"name":"Ambient Temperature Range (C)","value":"-40 C to +66 C","scope":"product_row","group":"Параметры исполнения"}

10

{"name":"Input Signal","value":"135 ohm","scope":"product_row","group":"Параметры исполнения"}

11

{"name":"Internal Auxiliary Switch","value":"2","scope":"product_row","group":"Параметры исполнения"}

12

{"name":"Auxiliary Switch Ratings","value":"120 Vac-- 7.2 AFL, 43.2 ALR, 40 VA pilot duty opposite contact; At 240 Vac-- 3.6 AFL, 21.6 ALR, 40 VA pilot duty opposite contact","scope":"product_row","group":"Параметры исполнения"}

13

{"name":"Stroke","value":"Adjustable; 90 to 160 degrees, Symmetrical","scope":"product_row","group":"Параметры исполнения"}

14

{"name":"Shaft Dimensions (in.)","value":"double-ended, 3/8 in. square","scope":"product_row","group":"Параметры исполнения"}

15

{"name":"Torque Rating (lb-in.)","value":"150 lb-in.","scope":"product_row","group":"Параметры исполнения"}

16

{"name":"Torque Rating (Nm)","value":"17 Nm","scope":"product_row","group":"Параметры исполнения"}

17

{"name":"Additional Torque Ratings (lb-in.)","value":"Breakaway-- 300 lb-in.","scope":"product_row","group":"Параметры исполнения"}

18

{"name":"Additional Torque Ratings (Nm)","value":"Breakaway-- 34.0 Nm","scope":"product_row","group":"Параметры исполнения"}

19

{"name":"Auxiliary Switch Setting","value":"7 and 80 degrees","scope":"product_row","group":"Параметры исполнения"}

20

{"name":"Factory Stroke Setting","value":"90 degrees","scope":"product_row","group":"Параметры исполнения"}

21

{"name":"Shaft Dimensions (mm)","value":"double-ended, 9.5 mm square","scope":"product_row","group":"Параметры исполнения"}

22

{"name":"Deadweight Load on Shaft","value":"Either End-- 200 lb (300 lb combined power and auxiliary shafts); 90.8 kg (136 kg combined power and auxiliary shafts);","scope":"product_row","group":"Параметры исполнения"}
