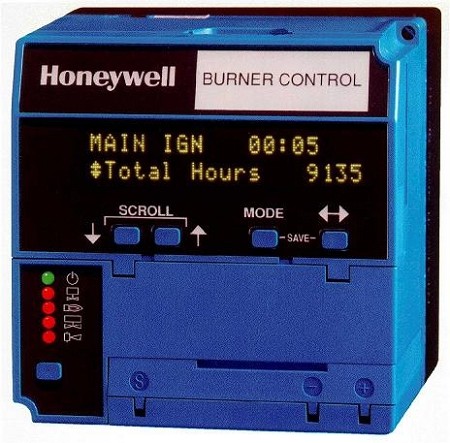

Honeywell EC7820A1034/U

Honeywell · Артикул: EC7820A1034/U

Интегрированное управление горелкой для автоматической подачи горючего газа, масла или комбинации. Имеет автоматическое определение последовательности горелок, индикацию состояния системы пламени,самодиагностику и устранение неисправностей. Доступ для проверки электрического напряжения. Гибкость приложений и возможности коммуникационного интерфейса. Пять функций Run / Test Switch. Взаимозаменяемые вставные усилители. Локальное или дистанционное оповещение об операции и информация о неисправности (необязательно). Энергонезависимая память сохраняет файлы истории и статус блокировки после потери питания. Совместим с существующими детекторами горения Honeywell. Product Specifications Application Primary Control Dimensions (in.) 5 in. wide x 5 in. high x 5 1/4 in. deep with Q7800A Subbase x 6 3/32 in. deep with Q7800B Subbase Dimensions (mm) 127 mm wide x 127 mm high x 133 mm deep with Q7800A Subbase x 155 mm deep with Q7800B Subbase Weight (lb) 1 lb 10 oz Weight (kg) 0.7 kg Comments 5 ignition attempts, Includes Modulation w/ Fan Output Frequency 60 Hz (±10%),50 Hz Voltage 220 to 240 Vac (+10, -15%) Shipping and Storage Temperature Range (F) -40 F to +140 F Shipping and Storage Temperature Range (C) -40 C to +60 C Flame Establishing Period - Pilot 5 sec or 10 sec Flame Establishing Period - Main 5 sec, or 8 sec, or Intermittent Interlocks Lockout Preignition Yes PrePurge Determined by ST7800A Purge Timer Card PostPurge 5 sec Early Spark Termination Yes, 5 sec Required Components Q7800A,B Universal Wiring Subbases. R7847, R7849, R7861, or R7886 Flame Signal Amplifier. ST7800A Plug-in Purge Timer Card. AirFlow Check User selectable Second Stage Pilot Valve Intermittent Pilot Type interrupted Vibration 0.5 G environment

Характеристики

0

{"name":"Application","value":"Primary Control","scope":"product_row","group":"Параметры исполнения"}

1

{"name":"Dimensions (in.)","value":"5 in. wide x 5 in. high x 5 1/4 in. deep with Q7800A Subbase x 6 3/32 in. deep with Q7800B Subbase","scope":"product_row","group":"Параметры исполнения"}

2

{"name":"Dimensions (mm)","value":"127 mm wide x 127 mm high x 133 mm deep with Q7800A Subbase x 155 mm deep with Q7800B Subbase","scope":"product_row","group":"Параметры исполнения"}

3

{"name":"Weight (lb)","value":"1 lb 10 oz","scope":"product_row","group":"Параметры исполнения"}

4

{"name":"Weight (kg)","value":"0.7 kg","scope":"product_row","group":"Параметры исполнения"}

5

{"name":"Comments","value":"5 ignition attempts, Includes Modulation w/ Fan Output","scope":"product_row","group":"Параметры исполнения"}

6

{"name":"Frequency","value":"60 Hz (±10%),50 Hz","scope":"product_row","group":"Параметры исполнения"}

7

{"name":"Voltage","value":"220 to 240 Vac (+10, -15%)","scope":"product_row","group":"Параметры исполнения"}

8

{"name":"Shipping and Storage Temperature Range (F)","value":"-40 F to +140 F","scope":"product_row","group":"Параметры исполнения"}

9

{"name":"Shipping and Storage Temperature Range (C)","value":"-40 C to +60 C","scope":"product_row","group":"Параметры исполнения"}

10

{"name":"Flame Establishing Period - Pilot","value":"5 sec or 10 sec","scope":"product_row","group":"Параметры исполнения"}

11

{"name":"Flame Establishing Period - Main","value":"5 sec, or 8 sec, or Intermittent","scope":"product_row","group":"Параметры исполнения"}

12

{"name":"Interlocks","value":"Lockout","scope":"product_row","group":"Параметры исполнения"}

13

{"name":"Preignition","value":"Yes","scope":"product_row","group":"Параметры исполнения"}

14

{"name":"PrePurge","value":"Determined by ST7800A Purge Timer Card","scope":"product_row","group":"Параметры исполнения"}

15

{"name":"PostPurge","value":"5 sec","scope":"product_row","group":"Параметры исполнения"}

16

{"name":"Early Spark Termination","value":"Yes, 5 sec","scope":"product_row","group":"Параметры исполнения"}

17

{"name":"Required Components","value":"Q7800A,B Universal Wiring Subbases. R7847, R7849, R7861, or R7886 Flame Signal Amplifier. ST7800A Plug-in Purge Timer Card.","scope":"product_row","group":"Параметры исполнения"}

18

{"name":"AirFlow Check","value":"User selectable","scope":"product_row","group":"Параметры исполнения"}

19

{"name":"Second Stage Pilot Valve","value":"Intermittent","scope":"product_row","group":"Параметры исполнения"}

20

{"name":"Pilot Type","value":"interrupted","scope":"product_row","group":"Параметры исполнения"}

21

{"name":"Vibration","value":"0.5 G environment","scope":"product_row","group":"Параметры исполнения"}
